Tech specs
Build | Arrival 152mm SP3 - SRAM GX AXS EAGLE |
---|---|
Suspension | Fork- RockShox Lyrik Select+, 160mm Charger 3 RC, DebonAir+, 44mm Offset Shock- RockShox Super Deluxe Select+, 185x55, DebonAir+ |
Wheelset | We Are One Convergence Triad- Front Hub- I9 1/1, Rear Hub- I9 1/1 |
Drivetrain | Rear Derailleur - SRAM RD GX1 AXS LUNAR WITH BATTERY COVER Shifter - SRAM EC GX AXS EAGLE RH 2 BUTTON Cranks - SRAM FC GX1 C EAGLE B148 DUB 170 LUNAR 32 Cassette - SRAM XG 1275 10-52T Bottom Bracket - DUB BSA MTB73 Chain - SRAM XG 1275 |
Brakes | Brakes - SRAM Code R Rotors - SRAM Centerline 200mm front, 180mm rear |
Controls | Headset - I9 RiX Bar & Stem - We Are One Da Package, 45mm Stem, 20mm Bar on M, 27.5mm Bar on L, 35mm Bar on XL Grips - SDG/ODI Hansolo Lock-on Dropper Post - Tellis Dropper post 31.6 - 150mm Saddle - SDG Bel-Air V3 Front Tire - Vittoria Mazza Enduro 2.6 Rear Tire - Vittoria Mazza Enduro 2.4 |
Dropper Post | Dropper Post - Tellis Dropper post 31.6 - M - 150mm, L - 170mm and XL - 200mm |
Weight | L - 30.8 lbs *Weight without pedals and sealant |
Wheel Size | 29 |
Front Travel | 160 |
Rear Travel | 152 |
Purpose | Shred ready ride |

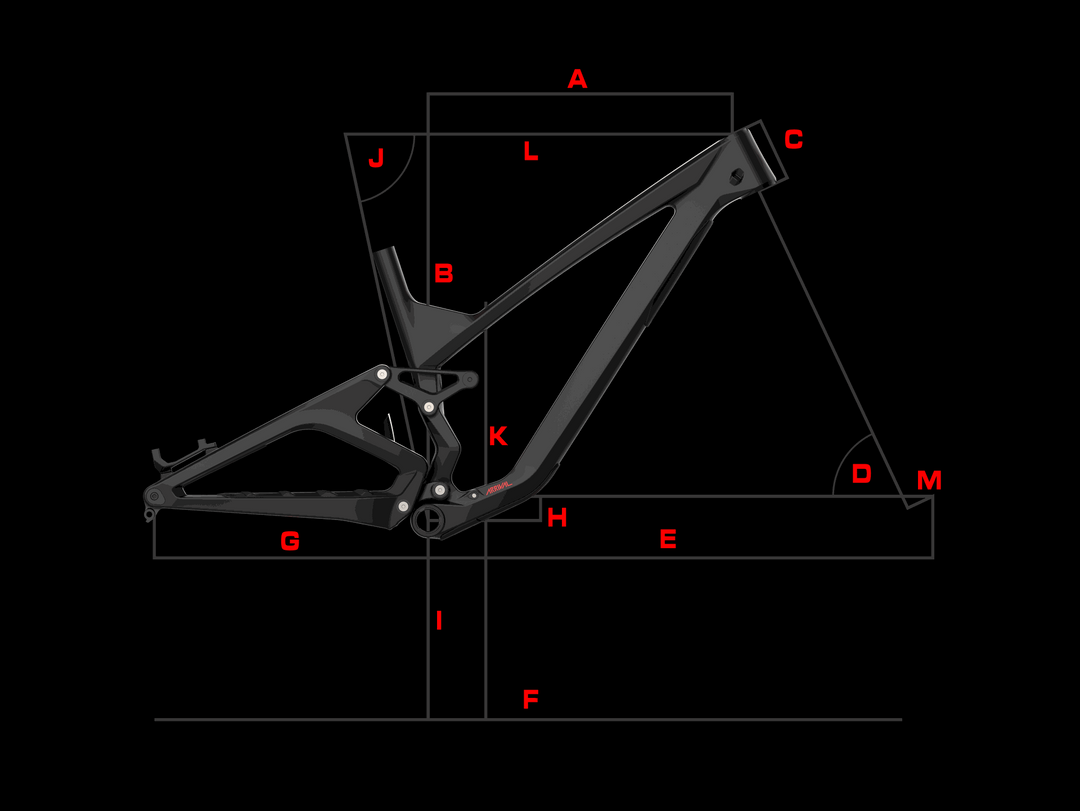

152 Geo and sizing

The Arrival 152 was designed to be set with 23-25% rear shock sag and a recommended 20% fork sag.
Since every product is Hand Laid here in Kamloops, BC, we confidently stand behind our products and offer them a lifetime warranty to the original owner, plus a crash replacement policy that ensures all of our supporters are looked after. We love seeing our products in the wild and want to ensure there is no hesitation once you have committed to becoming a part of
the family.
FAQ
The Arrival is currently UDH compatible.
- 250mm for M
- 260mm for L
- 270mm for XL
Please confirm insertion specs on your dropper post as different droppers have unique insertion ranges.
L LN 320
- If the rider weight is between 100-125lbs, we recommend 350 to 375 spring rate
- If the rider weight is between 125-150lbs, we recommend 400 to 425 spring rate
- If the rider weight is between 150-175lbs, we recommend 450 to 475 spring rate
- If the rider weight is between 175-200lbs, we recommend 500 to 525 spring rate
- If the rider weight is between 200-225lbs, we recommend 550 to 575 spring rate
- If the rider weight is between 225-250lbs, we recommend 600 to 625 spring rate
- If the rider weight is between 250lbs and more, we recommend 650 to 675 spring rate
- 6 of Enduro Bearings 6901 LLU MAX Single row all stainless steel
- 4 of Enduro Bearings 3901 LLU MAX Double row standard
To give all customers the ability to adjust their preferred stack height. If we choose to go the route of a higher stack this removes that ability. The Arrival sits in a happy medium where you can run a lower stack and adjust by using a higher rise bar and spacers to hit that higher stack if you wish.
Q-factor is boost 168mm and 55mm chainline.
ZS Tapered 44mm/56mm headset.
