What spring rate should I choose for my Arrival?

If the rider weight is between 100-125lbs, we recommend 350 to 375 spring rate If the rider weight is between 125-150lbs, we recommend 400 to 425 spring rate If the rider weight is between 150-175lbs, we recommend 450 to 475 spring rate If the rider weight is between 175-200lbs, we recommend 500 to 525 spring rate If the rider weight is between 200-225lbs, we recommend 550 to 575 spring rate If the rider weight is between 225-250lbs, we recommend 600 to 625 spring rate If the rider weight is between 250lbs and more, we recommend 650 to 675 spring rate

What are the Arrival bearing sizes?

6 of Enduro Bearings 6901 LLU MAX Single row all stainless steel 4 of Enduro Bearings 3901 LLU MAX Double row standard

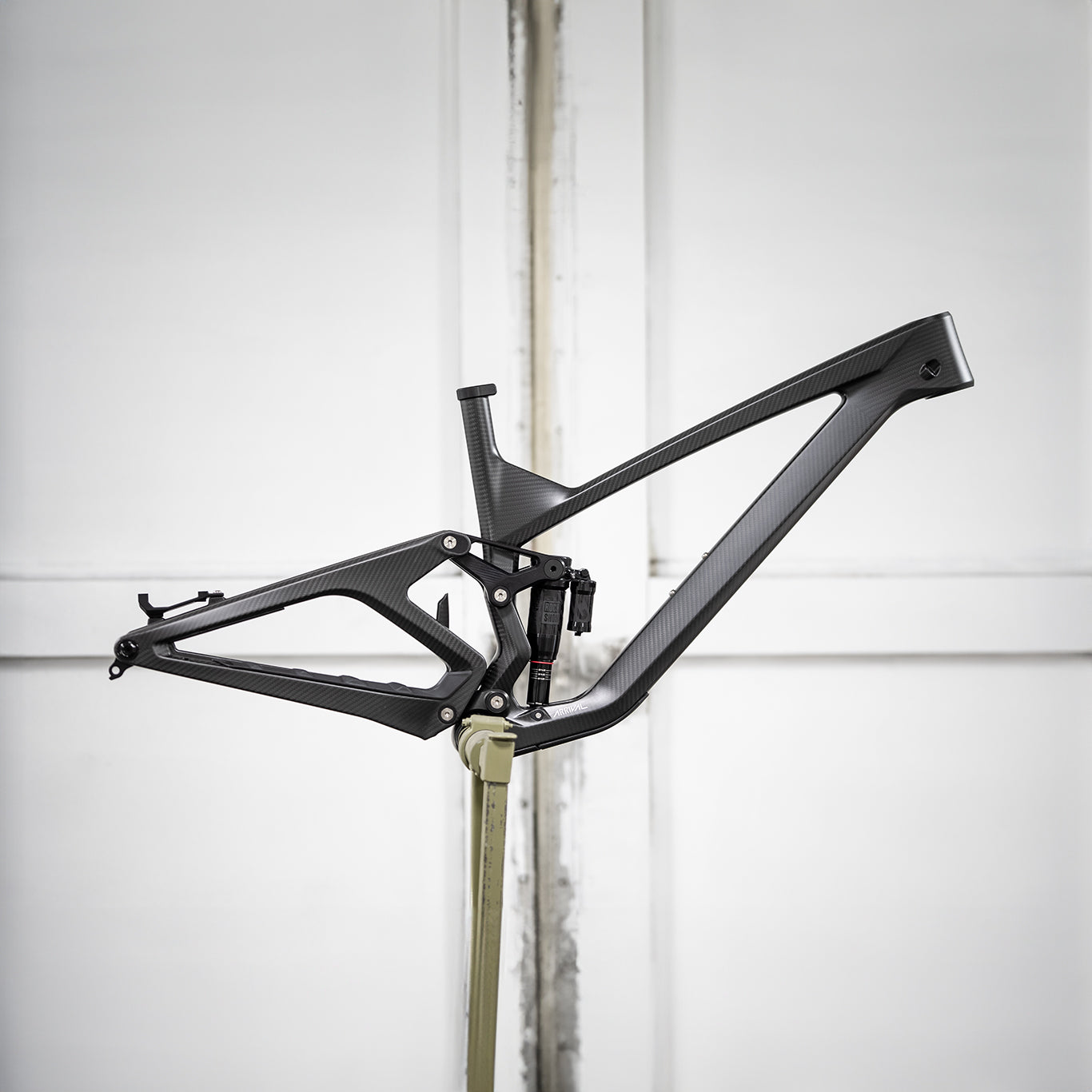

Arrival Frame

Name: Arrival Frame
Brand: WE ARE ONE COMPOSITES INC.
SKU: M130-NS
Price: 4050.0 USD
Availability: InStock

Arrival Frame Set

Three Travel Options

$4,050.00

Quantity

The Arrival Frame is UDH and MX compatible. We include a SRAM Universal Derailleur Hanger with every frame, giving you the option to run a non-UDH derailleur. This frame is painted in a matte raw finish with Cobalt logo.

The Arrival platform is an all-mountain enduro machine that rewards riders who appreciate long challenging days in the saddle and demand a capable bike on the descents. This versatile bike is ready for anything you can throw at it, and is right at home under the control of aggressive riders who are able to push their bike to the limit. The Arrival needs to be challenged to be understood and appreciated. Whether you're tackling big days out in the mountains or railing through tight, technical singletrack at your local hill, the Arrival will handle it all... if you can.

Featured Frame bundle:

Winter is the perfect time to build up your dream bike. For a limited time, we are offering you the opportunity to pick up an Arrival 152 frame with a Rockshox Super Deluxe Select+ shock and we are throwing in a FREE 160mm Lyrik Select+ fork!

Arrival 152 Frame

Rockshox Super Deluxe Select+ 185x55mm TR Shock

Rockshox Lyrik Select+ 160mm Fork

All Frames include:

SRAM Universal Derailleur Hanger

Seat Collar

180mm Rear Brake Mount

Super Boost Rear Axle

{"id":47437657768256,"title":"M \/ 130mm \/ No Shock","option1":"M","option2":"130mm","option3":"No Shock","sku":"M130-NS","requires_shipping":true,"taxable":true,"featured_image":{"id":43163887632704,"product_id":8361890054464,"position":1,"created_at":"2023-11-10T11:41:55-08:00","updated_at":"2023-11-10T11:44:18-08:00","alt":null,"width":1366,"height":1366,"src":"\/\/www.weareonecomposites.com\/cdn\/shop\/files\/Select1.jpg?v=1699645458","variant_ids":[47437657768256,47437657801024,47437657833792,47437657866560,47437657899328,47437657932096,47437657964864,47437657997632,47437658030400,47437658063168,47437658095936,47437658128704,47437658161472,47437658194240,47437658227008,47437658259776,47437658292544,47437658325312]},"available":true,"name":"Arrival Frame - M \/ 130mm \/ No Shock","public_title":"M \/ 130mm \/ No Shock","options":["M","130mm","No Shock"],"price":405000,"weight":11500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":35583357714752,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1366,"width":1366,"src":"\/\/www.weareonecomposites.com\/cdn\/shop\/files\/Select1.jpg?v=1699645458"}},"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":405000,"compare_at_price":null,"per_delivery_price":405000,"selling_plan_id":692436042048,"selling_plan_group_id":"1b374c208b2f248bb87eccd9fc1042ccf5b29172"}],"quantity_rule":{"min":1,"max":null,"increment":1}}

Geo and sizing

Sram Eagle Transmission Setup Guide

Arrival 152 Base Shock Settings

Arrival 170 Base Shock Settings

The Arrival 130 was designed to be set with 30% sag.

The Arrival 152 was designed to be set with 23-25% rear shock sag and a recommended 20% fork sag.

The Arrival 170 was designed to be set with 30% sag.

Since every product is Hand Laid here in Kamloops, BC, we confidently stand behind our products and offer them a lifetime warranty to the original owner, plus a crash replacement policy that ensures all of our supporters are looked after. We love seeing our products in the wild and want to ensure there is no hesitation once you have committed to becoming a part of
the family.

FAQ

The Arrival is currently UDH compatible.

250mm for M
260mm for L
270mm for XL

Please confirm insertion specs on your dropper post as different droppers have unique insertion ranges.

L LN 320

If the rider weight is between 100-125lbs, we recommend 350 to 375 spring rate
If the rider weight is between 125-150lbs, we recommend 400 to 425 spring rate
If the rider weight is between 150-175lbs, we recommend 450 to 475 spring rate
If the rider weight is between 175-200lbs, we recommend 500 to 525 spring rate
If the rider weight is between 200-225lbs, we recommend 550 to 575 spring rate
If the rider weight is between 225-250lbs, we recommend 600 to 625 spring rate
If the rider weight is between 250lbs and more, we recommend 650 to 675 spring rate

6 of Enduro Bearings 6901 LLU MAX Single row all stainless steel
4 of Enduro Bearings 3901 LLU MAX Double row standard

Click here to Shop.

Click here to learn.

To give all customers the ability to adjust their preferred stack height. If we choose to go the route of a higher stack this removes that ability. The Arrival sits in a happy medium where you can run a lower stack and adjust by using a higher rise bar and spacers to hit that higher stack if you wish.

Q-factor is boost 168mm and 55mm chainline.

ZS Tapered 44mm/56mm headset.
